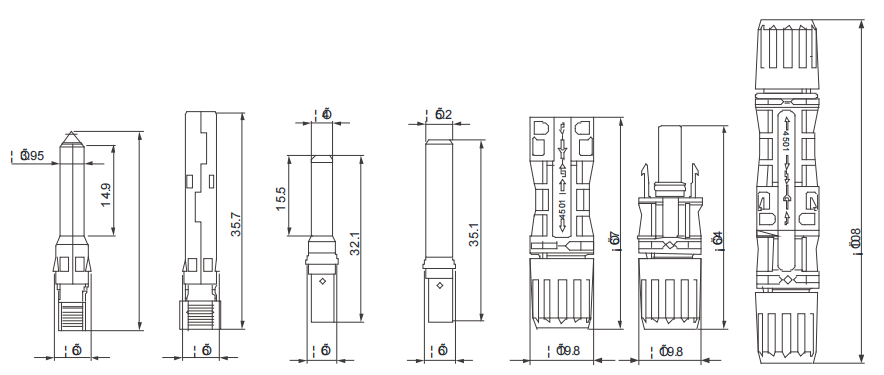

| Metal plug system |
φ4mm |
| Rated voltage |
1000V DC(IEC)1 |
| Rated current |
17A,22A,30A(1.5mm²,2.5mm²;14AWG,4mm²;6mm²;12AWG,10AWG) |
| Testing voltage |
6kV(50Hz，1 min) |
| Temperature range |
-40℃...+90℃(IEC)-40℃...+75℃(UL) |
| Upper temperature limit |
+105℃ （IEC） |
| Protection level, plug-in state |
IP67 |
| Touch protection, not plugged in state |
IP2X |
| Contact impedance of connectors |
0.5mΩ |
| Security level |
|| |
| Terminal material |
Messing,verzinnt Copper Alloy,tin plated |
| Insulating material |
PC/PV |
| Locking system |
Snap-in |
| Flame level |
UL-94-V0 |
| Corrosion test level |
IEC 60068-2-52 |
